Oil Bottling Line for Glass Bottles, 1,000 BPH – NP 724

Product: Oil
Speed: 1000 bph
Linear from left to right
Processed container type: glass bottles

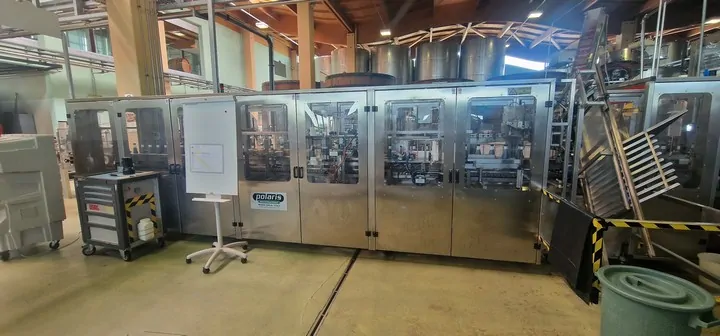

Polaris Monoblock
Year: 2013
Rinser with 10 fixed-nozzle clamps, single air treatment
High-vacuum filler with 10 mechanical valves
Additional station for technician, for adding aromas or other ingredients to the product
Single-head capper for aluminum screw caps and non-refill pressure caps
Cap size: Ø 25mm – 31.5mm – 35 mm
Leveler before capping
Distribution system: pick-and-place on the fly
Cap elevator included
Single-head PVC capsule applicator
Capsule presence detection with fiber optic sensor
Long-autonomy capsule magazine
3-station linear self-adhesive labeling machine from left to right
Applicable label types:
– Front
– Back
– Seal/Neck label
Additional smoothing at the outlet
Packaging monoblock
Workable carton formats: 4×2; 3×2; 3×3; 3×4
Carton type: American case or tray
Adjustable single-head cartoner
– Can carton both in American cases and trays
Carton sealer with upper and lower tape closure
Safety guards
Novopac shrink wrapper
Model: CS2 070 M
Year: 2013
Speed: approx. 10 PPM
with sealing bar
Film only
4 infeed lanes for 3×2, 4×2, 4×3 formats
